How to Use the HTML Block Element

🎯 The HTML Block element lets you embed arbitrary HTML content or bind dynamic values for custom renderings. Use it for small widgets, embedded markup, or custom formatted output.

👉 Adding an HTML Block​

  1. Add a new element and select HTML Block.
  2. Give it a friendly name (e.g., htmlblock, CustomWidget).
  3. Position and size the element using the editor canvas.

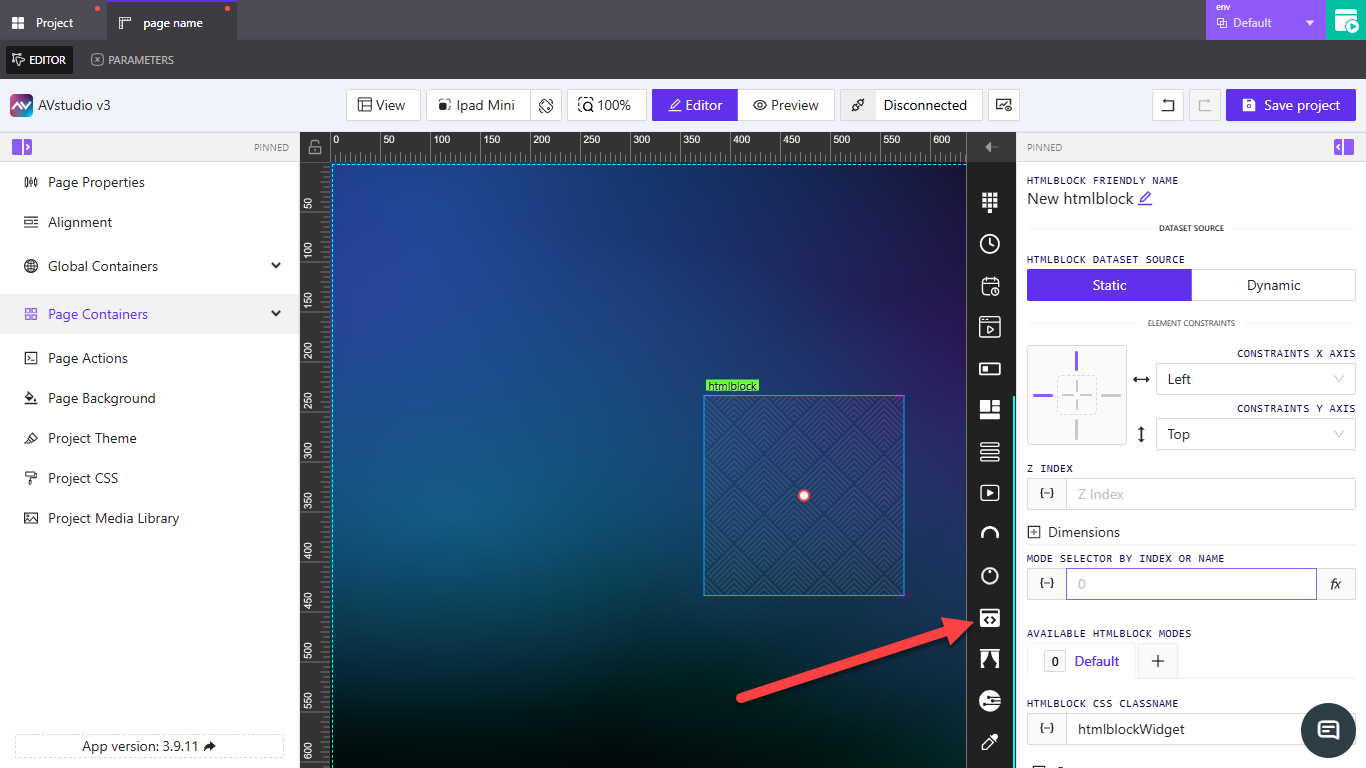

HTML Block — editor view 1

👉 Dataset Source​

  • Static — Paste static HTML or text.
  • Dynamic — Bind to a dataset signal or parameter to render dynamic HTML fragments or values.

Select the option under HTMLBLOCK DATASET SOURCE in the right panel.

👉 Constraints, Dimensions & Z-Index​

Use the Element Constraints controls to anchor the block (Left/Top/Center/etc.). Set Width/Height in Dimensions. Adjust Z Index for stacking order. These controls appear in the right properties panel.

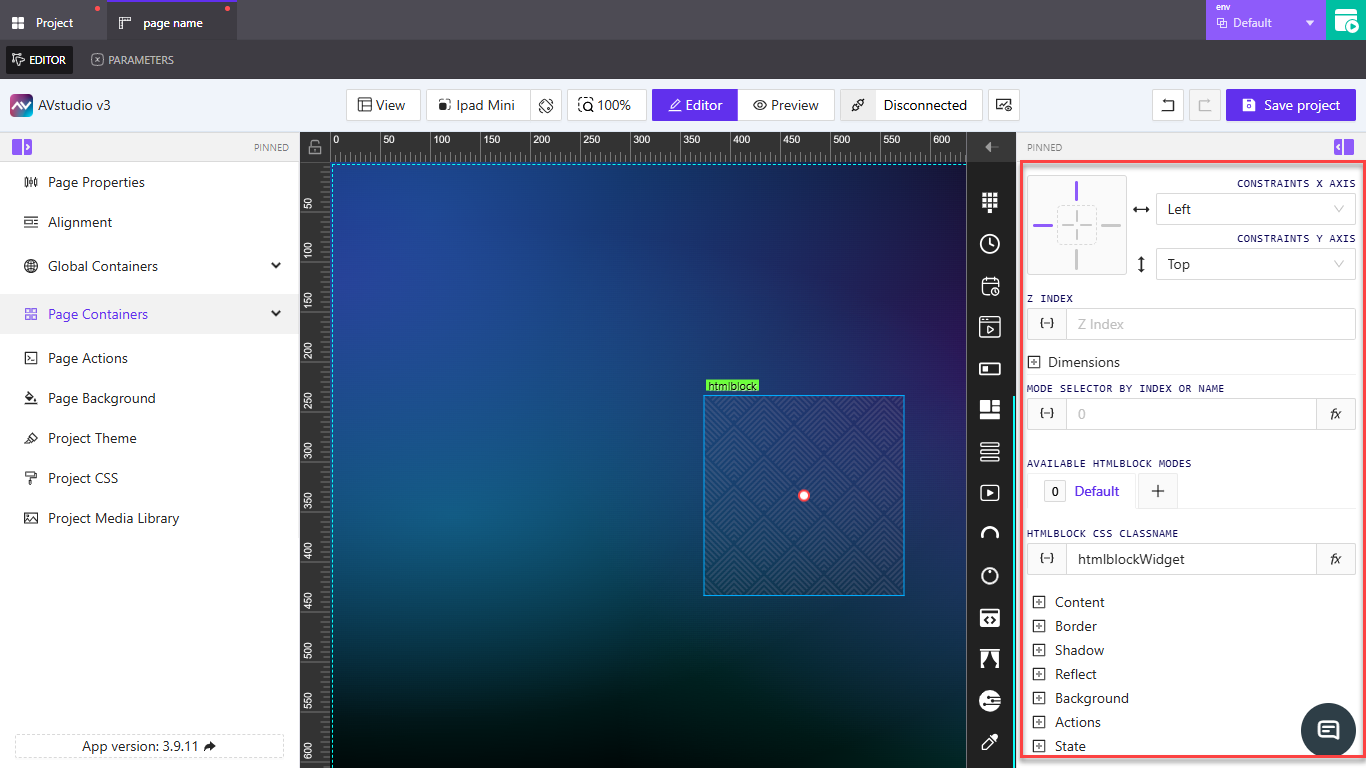

HTML Block — editor view 2

👉 Styling and Modes​

  • HTMLBLOCK CSS CLASSNAME — Apply a project CSS class (e.g., htmlblockWidget) to scope styles.
  • Available Modes — Create multiple modes (Default, Alternate) and switch by index or name.
  • Use project CSS (Project CSS) for global styles, or inline style tags inside the HTML content if needed.

👉 Content and Security​

  • For Static content, paste trusted HTML only (avoid unsafe scripts).
  • For Dynamic content, sanitize inputs server-side if rendering user-provided HTML.
  • Prefer using CSS classes and external styles for consistent theming.

👉 Actions & State​

  • Add Actions to respond to clicks or other events (e.g., open URL, set mode).
  • Use State controls to toggle visibility, disabled state, or mode selection via signals.

📌 Key Points​

  • Flexible for custom layout and rich content.
  • Use CSS classname for styling and theming.
  • Choose Static for fixed markup, Dynamic to render bound content.
  • Sanitize or avoid untrusted scripts.

❓ FAQ​

Can the HTML Block run JavaScript?
Scripts may be blocked or unsafe depending on the runtime — avoid embedding untrusted JS. Use actions and signals for interactivity.

How do I style the block globally?
Add rules to Project CSS and reference the HTMLBLOCK CSS CLASSNAME.
